Product overview

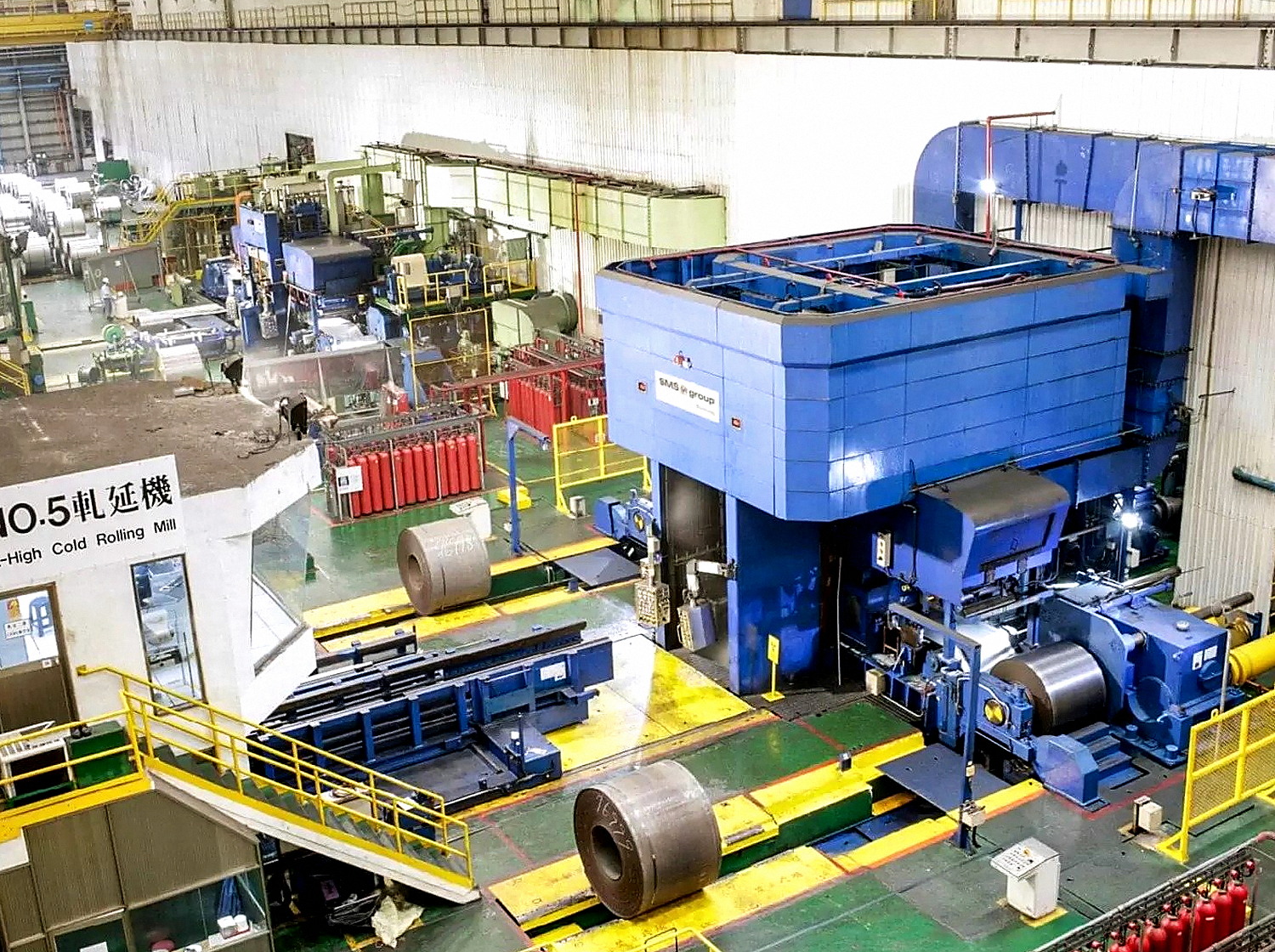

The JINYE 18 high rolling mill is configured for 2, 3, and 4 series stainless steel cold rolling. It supports 450-1450 mm maximum strip width, 0.03 mm minimum strip thickness, 0.5-5.0 mm maximum incoming thickness, and up to 800 m/min rolling speed.
Key systems include AGC closed-loop thickness control, AFC automatic flatness control, closed-loop tension control, edge tracking, hydraulic roll gap adjustment, gearbox or coupling transmission, and AC/DC or servo drive options.
Key parameters
| Parameter Category | Parameter | Value | Unit |
|---|---|---|---|
| Basic Specification | Equipment model | 1450 | - |
| Basic Specification | Maximum strip width | 450-1450 | mm |
| Basic Specification | Minimum strip thickness | 0.03 | mm |
| Basic Specification | Maximum incoming thickness | 0.5-5.0 | mm |
| Basic Specification | Maximum coil weight | 0-28 | ton |
| Performance | Maximum rolling speed | 0-800 | m/min |
| Performance | Thickness control accuracy | 5 | um |
| Performance | Flatness control | 10 | I-Unit |
| Structure | Support roll configuration | 18-roll structure | - |
| Control System | Automatic gauge control | Closed-loop AGC | - |
Application focus
- Stainless steel strip cold rolling with high gauge accuracy requirements.
- Projects requiring compact high-roll support and stable strip shape control.
- Production lines requiring automatic flatness control, closed-loop tension control, edge tracking, and Siemens HMI or PLC integration.
